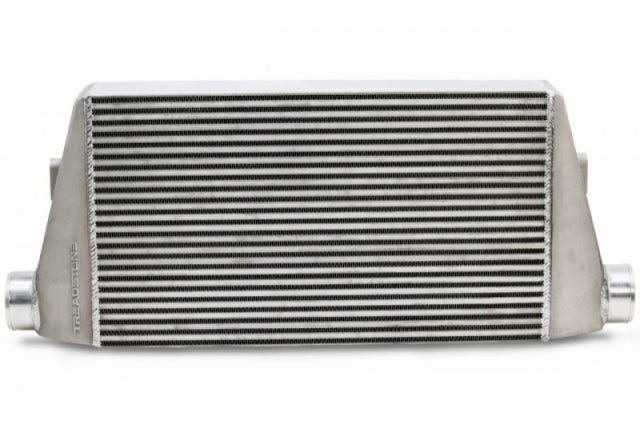

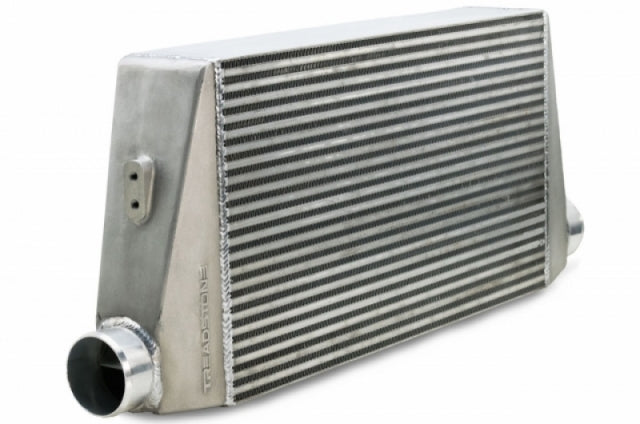

TREADSTONE RATED-R INTERCOOLER TR1235R

TR1235 R-Rated Intercooler

Treadstone Performance Engineering Rated-R Intercoolers are mainly used on side mount twin turbo applications where we can sacrifice ambient external air flow because there isn't a radiator behind each core that requires airflow.

By eliminating the radiators need for airflow, we are able to shrink the ambient fin height, and add this to internal flow. These Rated-R cores will also be found on full race intercooler set ups on large front mount intercoolers

This R core, with our standard bar height, is rated for 928 HP and 1393 CFM while the normal TR1235 is rated for 760 HP and 1142 CFM. (22" x 12.5" x 3.5")

Since this unit has 22 internal passage ways compared to 18, this core allows higher internal flow and less pressure drop. These cores are mainly used on side mount twin turbo applications where we can sacrifice ambient external airflow because there is not a radiator behind each core that needs air flow. Eliminating the radiators need for airflow, we can shrink the ambient fin height, and add this to internal flow.

These Rated-R cores will also be found on full race intercooler set ups on large front mount intercoolers.
